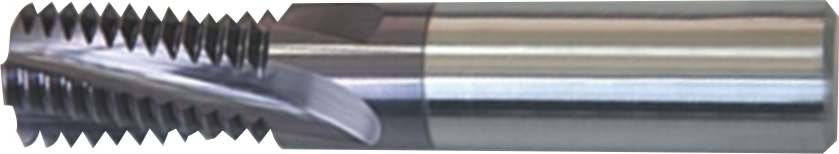

Koves ISO metric solid carbide thread millKoves American UN solid carbide thread mill
Carbide End Mills

Solid Carbide Thread Mills (ISO Metric, UN, BSP/G, NPT)

Solid carbide thread mills in full-profile and partial-profile types for ISO metric, American UN, BSP(G)-55°, NPT-60° and more; single-tooth, three-tooth and full-tooth styles.

Inquire about this productContact details

Opens your email application; sending happens there.

Product information

The thread milling cutter line (catalog L73–L82) includes ISO metric full profile solid carbide thread mills, American UN full profile thread mills, BSP(G)-55° full profile thread mills, NPT-60° thread mills and partial profile 60° thread mills, with tolerance classes 6g/6H for metric and standard NPT per USAS B2.1:1968. The supplier's solutions deck groups thread mills into single-tooth (1T), three-tooth (3T) and full-tooth (KM) styles and states that thread milling offers process flexibility (one tool covers a diameter range, left- and right-hand threads), reliable machining in difficult materials such as titanium alloy and stainless steel, and suitability for high-hardness materials above HRC 60 and large-diameter threads.

Specifications

Thread standardsISO metric (tolerance 6g/6H); American UN; BSP(G)-55° (Whitworth family); NPT-60° (USAS B2.1:1968); also G55 partial profile and A60 partial profile
Cutter stylesSingle-tooth (1T, general purpose), three-tooth (3T, roughing and finishing), full-tooth (KM, high efficiency)
Example specificationsISO metric coarse M0.6–M36 and fine pitches; UNC/UNF/UNEF; G1/16-28 to G1-11; NPT1/16-27 to NPT1-11.5
Suitable materials40Cr, Cr12, SUS, P20, 718, S136, manganese steel, titanium alloy, stainless steel (per solutions deck ISO fixed-pitch table)

Product details

One thread mill can cover a range of diameters and both left- and right-hand threads through CNC program adjustment, reducing the variety of dedicated tools in stock.

Thread milling is presented by the supplier as suitable for difficult-to-machine materials such as titanium alloy and stainless steel and for blind holes, avoiding tap breakage risk.

The supplier states the process can handle high-hardness materials (HRC>60) and large-diameter threads.

Thread mill ranges and stocked sizes

Ranges and dimensions as presented in the Koves solutions deck; each table names the slide it was taken from.

Thread mill styles

Solutions deck slide 22 · 3 entries

The catalog groups thread mills by how many teeth engage the thread.

Style codeCharacteristicAdvantage
1TUniversal, covers a very wide working rangeOne cutter handles several thread diameters and pitches, so far fewer sizes have to be stocked — especially useful for non-standard and sampling work. Cuts both right-hand and left-hand threads.
3TCost-effective, with good accuracy and early finishing in one passCombines roughing and finishing in one tool, which extends tool life. Thread taper is reduced, so thread accuracy is easier to hold.
KMHigh efficiency, good surface finishFastest cycle per part: fewer passes, less machining time, high efficiency and good surface finish.

Variable pitch thread mills (A60° / G55°)

Solutions deck slide 23 · 47 entries

One cutter covers a pitch range, printed in brackets after the model.

SeriesModel (pitch range)
A60-1TD1.5XA60(0.2-0.35)
A60-1TD2.0XA60(0.3-0.5)
A60-1TD2.35XA60(0.3-0.5)
A60-1TD3.0XA60(0.5-0.8)
A60-1TD3.3XA60(0.5-0.8)
A60-1TD4.0XA60(0.5-1.0)
A60-1TD4.6XA60(0.5-1.25)
A60-1TD4.8XA60(0.5-1.25)
A60-1TD5.0XA60(0.5-1.25)
A60-1TD6.0XA60-50L(0.5-1.25)
A60-1TD6.0XA60-75L(0.5-1.25)
A60-1TD6.0XA60-100L(0.5-1.25)
A60-1TD8.0XA60-60L(0.8-2.0)
A60-1TD8.0XA60-75L(0.8-2.0)
A60-1TD8.0XA60-100L(0.8-2.0)
A60-1TD9.4XA60(1.25-2.0)
A60-1TD10XA60-75L(0.5-2.0)
A60-1TD10XA60-100L(0.5-2.0)
A60-1TD12XA60-75L(1.0-3.0)
A60-1TD12XA60-75L(1.0-3.0)
A60-1TD14XA60(1.0-4.0)
A60-1TD20XA60(2.0-6.0)
G55-1TD3.0XG55(0.5-1.0)
G55-1TD4.0XG55(0.5-1.0)
G55-1TD4.6XG55(0.5-1.25)
G55-1TD4.8XG55(0.5-1.25)
G55-1TD5.0XG55(0.5-1.25)
G55-1TD6.0XG55(0.5-1.25)
G55-1TD8.0XG55-60L(0.8-2.0)
G55-1TD8.0XG55-75L(0.8-2.0)
G55-1TD8.0XG55-100L(0.8-2.0)
G55-1TD10XG55(1.0-2.5)
G55-1TG1/16-28
G55-1TD5.95XG55
G55-1T(0.8-1.5)
G55-1TG1/8-28
G55-1TD7.95XG55(0.8-2.0)
G55-1TG1/4-19
G55-1TD9.55XG55(1.0-2.5)
G55-1TG3/8-19
G55-1TD11.95XG55
G55-1T(1.5-2.5)
G55-1TG1/2-14
G55-1TD15.95XG55
G55-1T(2.0-3.0)
G55-1TG3/4-14
G55-1TD15.95XG55(2.0-3.0)

ISO metric 60° thread mills, stocked sizes

Solutions deck slide 24 · 63 entries

Sizes are given as thread diameter x pitch (mm).

SeriesPitch seriesSize
60ISO-1TCoarseM0.6X0.15
60ISO-1TCoarseM0.8X0.2
60ISO-1TCoarseM0.9X0.225
60ISO-1TCoarseM1X0.25
60ISO-1TCoarseM1.2X0.25
60ISO-1TCoarseM1.4X0.3
60ISO-1TCoarseM1.6X0.35
60ISO-1TCoarseM2X0.4
60ISO-1TCoarseM2.5X0.45
60ISO-1TCoarseM3X0.5
60ISO-1TCoarseM4X0.7
60ISO-1TCoarseM5X0.8
60ISO-1TCoarseM6X1.0
60ISO-1TCoarseM8X1.25
60ISO-1TCoarseM10X1.5
60ISO-1TCoarseM12X1.75
60ISO-1TCoarseM14X2.0
60ISO-1TCoarseM16X2.0
60ISO-1TCoarseM18X2.5
60ISO-1TCoarseM20X2.5
60ISO-1TCoarseM22X3.0
60ISO-1TCoarseM24X3.0
60ISO-1TCoarseM30X3.5
60ISO-1TCoarseM30X6.0
60ISO-1TCoarseM36X4.0
60ISO-3TCoarseM1X0.25
60ISO-3TCoarseM1.2X0.25
60ISO-3TCoarseM1.4X0.3
60ISO-3TCoarseM1.6X0.35
60ISO-3TCoarseM2X0.4
60ISO-3TCoarseM2.5X0.45
60ISO-3TCoarseM3X0.5
60ISO-3TCoarseM3X0.6
60ISO-3TCoarseM4X0.7
60ISO-3TCoarseM5X0.8
60ISO-3TCoarseM6X1.0
60ISO-3TCoarseM8X1.25
60ISO-3TCoarseM10X1.5
60ISO-3TCoarseM12X1.75
60ISO-3TCoarseM14X2.0
60ISO-3TCoarseM16X2.0
60ISO-3TCoarseM20X2.5
60ISO-3TCoarseM24X3.0
60ISO-3TCoarseM30X3.5
60ISO-KMCoarseM1.6X0.35
60ISO-KMCoarseM2X0.4
60ISO-KMCoarseM2.5X0.45
60ISO-KMCoarseM3X0.5
60ISO-KMCoarseM3.5X0.6
60ISO-KMCoarseM4X0.7
60ISO-KMCoarseM5X0.8
60ISO-KMCoarseM6X1.0
60ISO-KMCoarseM8X1.25
60ISO-KMCoarseM10X1.5
60ISO-KMCoarseM12X1.75
60ISO-KMCoarseM14X2.0
60ISO-KMCoarseM14X2.0
60ISO-KMCoarseM16X2.0
60ISO-KMCoarseM18X2.0
60ISO-KMCoarseM20X2.5
60ISO-KMCoarseM24X3.0
60ISO-KMCoarseM30X2.0
60ISO-KMCoarseM30X3.5

UNC / UNF / UNEF, BSPT (RC), BSP (G) and NPT thread mills, stocked sizes

Solutions deck slide 25 · 61 entries

Inch designations as printed in the catalog, e.g. UNC4-40 = 4-40 UNC.

SeriesModel
UN-1TUNC4-40
UN-1TUNC6-32
UN-1TUNF10-32
UN-1TUNC8-32
UN-1TCNF1/4-28
UN-1TUNC1/4-20
UN-1TUNC5/16-18
UN-1TUNC3/8-16
UN-1TUNF3/8-24
UN-1TUNC1/2-13
UN-1TUNF9/16-18
UN-1TUNF3/4-16
UN-3TUNC1-64
UN-3TUNF1-72
UN-3TUNF0-80
UN-3TUNC3-48
UN-3TUNF8-36
UN-3TUNC10-24
UN-3TUNF10-32
UN-3TUNC2-56
UN-3TUNC6-32
UN-3TUNC4-40
UN-3TUNC8-32
UN-3TUNC5-40
UN-KMUNC1-18
UN-KMUNC2-56
UN-KMUNC4-40
UN-KMUNC6-32
UN-KMUNC8-32
UN-KMUNF10-32
UN-KMUNC10-24
UN-KMUNC1/4-20
UN-KMUNF1/4-28
UN-KMUNS10-48
UN-KMUNF5/16-24
UN-KMUNC5/16-18
UN-KMUNF3/8-24
UN-KMUNC3/8-16
UN-KMUNF5/8-18
UN-KMUNEF3/8-32
RC-KMRC1/16-28
RC-KMRC1/8-28
RC-KMRC1/8-28
RC-KMRC1/8-28
RC-KMRC1/4-19
RC-KMRC3/8-19
RC-KMRC1/2-14
RC-KMRC1-11
G-KMG1/16-28
G-KMG1/8-28
G-KMG1/4-19
G-KMG3/8-19
G-KMG1/2-14
G-KMG1-11
NPT-KMNPT1/16-27
NPT-KMNPT1/8-27
NPT-KMNPT1/4-18
NPT-KMNPT3/8-18
NPT-KMNPT1/2-14
NPT-KMNPT3/4-14
NPT-KMNPT1-11.5

NPTF, PG (DIN), BSW, G and combined drill-and-thread mills, stocked sizes

Solutions deck slide 26 · 49 entries

The DM series drills and threads the hole in one operation for aluminium and non-ferrous metals.

SeriesModel
NPTF-KMNPTF1/16-27
NPTF-KMNPTF1/8-27
NPTF-KMNPTF1/4-18
NPTF-KMNPTF3/8-18
NPTF-KMNPTF1/2-14
NPTF-KMNPTF1-11.5
PG-3TPG7-20
PG-3TPG9-18
PG-3TPG11-18
PG-3TPG13.5-18
PG-3TPG16-18
PG-3TPG21-16
PG-3TPG29-16
PG-3TPG36-16
PG-3TPG42-16
PG-3TPG48-16
PG-KMPG7-20
PG-KMPG9-18
PG-KMPG11-18
PG-KMPG13.5-18
PG-KMPG16-18
PG-KMPG21-16
PG-KMPG29-16
PG-KMPG36-16
PG-KMPG42-16
PG-KMPG48-16
BSW-1T1/8-40BSW
BSW-1T1/4-20BSW
BSW-1T5/16-18BSW
BSW-1T3/8-16BSW
BSW-1T7/16-14BSW
BSW-1T1/2-12BSW
BSW-1T5/8-11BSW
BSW-1T3/4-10BSW
BSW-1T7/8-9BSW
BSW-1T1-8BSW
BSW-1T11/8BSW
BSW-3TG1/16-28
BSW-3TG1/8-28
BSW-3TG1/4-19
BSW-3TG1/2-14
BSW-3TG1-11
DMM6XP1.0
DMM8XP1.0
DMM8XP1.25
DMM10XP1.0
DMM10XP1.5
DMM12XP1.5
DMM12XP1.75

Liquid-cooling industry cutters with full dimensions

Solutions deck slide 27 · 17 entries

Model / type / threads per inch / cutting diameter / effective depth / flutes / shank diameter / overall length, as printed in the solutions deck.

ModelTypeThreads per inchCutting dia. d (mm)Effective depth L1 (mm)FlutesShank dia. D (mm)Overall length L (mm)
UNC4-40Single tooth 1T402.138.23450
UNF9/16-18Single tooth 1T18123551275
UNC4-40Three tooth 3T402.1363450
UNF7/16-20Three tooth 3T209.52841075
UNF9/16-18Three tooth 3T1811.33041275
UN7/8-14Half tooth MM14122541275
UNF9/16-18Full tooth KM18103041075
UNF7/16-20Full tooth KM208.52341075
G1/8-28Single tooth 1T287.7204860
G1/8-28Three tooth 3T287.7204860
G1/8-28Full tooth KM287.7204860
G1/4(3/8)-19Single tooth 1T28102041072
G1/4(3/8)-19Three tooth 3T19102041072
G1/4(3/8)-19Full tooth KM19102041072
G1/2-14Single tooth 1T1411.92041275
G1/2-14Three tooth 3T1411.92041275
G1/2-14Full tooth KM1411.92041275
