HM-MAX Multi-Function Carbide End Mills
Multi-function solid carbide end mills including 6-flute finishing and 4-flute roughing types; ball nose R0.5–R6.0 mm and flat/radius D1.0–D20.0 mm.
Opens your email application; sending happens there.
Product information
The HM-MAX multi-function machining series (catalog L08–L17) extends the standard line with 6-flute finishing end mills (HME645, HMEL645, D6.0–D20.0) and 4-flute roughing end mills (HMRE430, HMREL430, D3.0–D20.0), alongside 2-flute ball nose HMB230, 4-flute radius HMR435, 4-flute flat HME435/HMEL435 and 2-flute flat HME235/HMEL235.
Specifications
| Cutter types | HMB230 2-flute ball nose; HMR435 4-flute radius; HME435 4-flute flat; HMEL435 4-flute long-shank flat; HME235 2-flute flat; HMEL235 2-flute long-shank flat; HME645 / HMEL645 6-flute flat; HMRE430 / HMREL430 4-flute roughing |
|---|---|
| Diameter range | R0.5–R6.0 mm ball nose; D1.0–D20.0 mm flat; D1.0–D12.0 mm radius; D6.0–D20.0 mm 6-flute; D3.0–D20.0 mm roughing |
| Example stock models | HME435-060160-050-S06; HMRE430-080200-060-S08; HME645-100300-075-S10 |
Available sizes
Model codes and dimensions reproduced from the Koves 2025 Solid Round Cutting Tools catalog. Stock items are listed in the catalog, not confirmed live — ask us for current availability.
HM-MAX Ball End Mill, 2-Flute, 30° helix
Catalog page 7 · 16 sizes · code HMB230
| Model | Dia. (mm) | Ball radius (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|---|
| HMB230-010020-050-S04 | 1 | 0.5 | 2 | 50 | 4 |
| HMB230-020040-050-S04 | 2 | 1.0 | 4 | 50 | 4 |
| HMB230-030060-050-S04 | 3 | 1.5 | 6 | 50 | 4 |
| HMB230-040080-050-S04 | 4 | 2.0 | 8 | 50 | 6 |
| HMB230-040080-050-S06 | 4 | 2.0 | 8 | 50 | 6 |
| HMB230-050100-050-S06 | 5 | 2.5 | 10 | 50 | 6 |
| HMB230-060120-050-S06 | 6 | 3.0 | 12 | 50 | 6 |
| HMB230-060120-075-S06 | 6 | 3.0 | 12 | 75 | 6 |
| HMB230-060120-100-S06 | 6 | 3.0 | 12 | 100 | 6 |
| HMB230-080160-060-S08 | 8 | 4.0 | 16 | 60 | 8 |
| HMB230-080160-075-S08 | 8 | 4.0 | 16 | 75 | 8 |
| HMB230-080160-100-S08 | 8 | 4.0 | 16 | 100 | 8 |
| HMB230-100200-075-S10 | 10 | 5.0 | 20 | 75 | 10 |
| HMB230-100200-100-S10 | 10 | 5.0 | 20 | 100 | 10 |
| HMB230-120240-075-S12 | 12 | 6.0 | 24 | 75 | 12 |
| HMB230-120240-100-S12 | 12 | 6.0 | 24 | 100 | 12 |

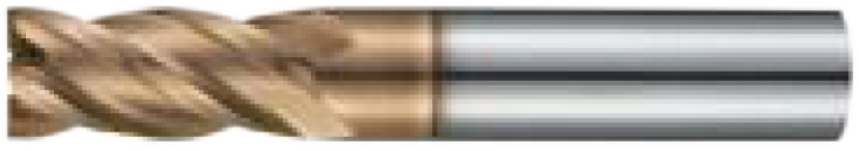

HM-MAX Flat End Mill, 4-Flute, 35° helix
Catalog page 8 · 16 sizes · code HME435
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HME435-010030-050-S04 | 1.0 | 3 | 50 | 4 |
| HME435-015040-050-S04 | 1.5 | 4 | 50 | 4 |
| HME435-020060-050-S04 | 2 | 6 | 50 | 4 |
| HME435-025070-050-S04 | 2.5 | 7 | 50 | 4 |
| HME435-030090-050-S03 | 3 | 9 | 50 | 3 |
| HME435-030090-050-S04 | 3 | 9 | 50 | 4 |
| HME435-040110-050-S04 | 4 | 11 | 50 | 4 |
| HME435-050130-050-S06 | 5 | 13 | 50 | 6 |
| HME435-060160-050-S06 | 6 | 16 | 50 | 6 |
| HME435-080200-060-S08 | 8 | 20 | 60 | 8 |
| HME435-100250-075-S10 | 10 | 25 | 75 | 10 |
| HME435-120300-075-S12 | 12 | 30 | 75 | 12 |
| HME435-140350-100-S14 | 14 | 35 | 100 | 14 |
| HME435-160400-100-S16 | 16 | 40 | 100 | 16 |
| HME435-180450-100-S18 | 18 | 45 | 100 | 18 |
| HME435-200450-100-S20 | 20 | 45 | 100 | 20 |

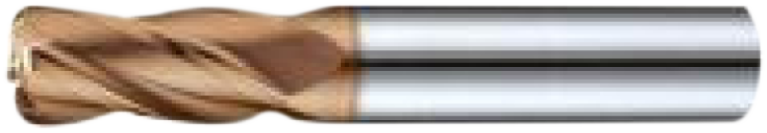

HM-MAX Radius End Mill, 4-Flute, 35° helix
Catalog page 8 · 27 sizes · code HMR435
| Model | Dia. (mm) | Corner radius (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|---|
| HMR435-010030R0.2-050-S04 | 1 | 0.2 | 3 | 50 | 4 |
| HMR435-020060R0.2-050-S04 | 2 | 0.2 | 6 | 50 | 4 |
| HMR435-030080R0.2-050-S04 | 3 | 0.2 | 8 | 50 | 4 |
| HMR435-030080R0.5-050-S04 | 3 | 0.5 | 8 | 50 | 4 |
| HMR435-040110R0.2-050-S04 | 4 | 0.2 | 11 | 50 | 4 |
| HMR435-040110R0.5-050-S04 | 4 | 0.5 | 11 | 50 | 4 |
| HMR435-060160R0.2-050-S06 | 6 | 0.2 | 16 | 50 | 6 |
| HMR435-060160R0.5-050-S06 | 6 | 0.5 | 16 | 50 | 6 |
| HMR435-060160R1.0-050-S06 | 6 | 1 | 16 | 50 | 6 |
| HMR435-060160R0.5-075-S06 | 6 | 0.5 | 16 | 75 | 6 |
| HMR435-060160R1.0-075-S06 | 6 | 1 | 16 | 75 | 6 |
| HMR435-060160R0.5-100-S06 | 6 | 0.5 | 16 | 100 | 6 |
| HMR435-060160R1.0-100-S06 | 6 | 1 | 16 | 100 | 6 |
| HMR435-080200R0.5-060-S08 | 8 | 0.5 | 20 | 60 | 8 |
| HMR435-080200R1.0-060-S08 | 8 | 1 | 20 | 60 | 8 |
| HMR435-080200R0.5-075-S08 | 8 | 0.5 | 20 | 75 | 8 |
| HMR435-080200R1.0-075-S08 | 8 | 1 | 20 | 75 | 8 |
| HMR435-080200R0.5-100-S08 | 8 | 0.5 | 20 | 100 | 8 |
| HMR435-080200R1.0-100-S08 | 8 | 1 | 20 | 100 | 8 |
| HMR435-100250R0.5-075-S10 | 10 | 0.5 | 25 | 75 | 10 |
| HMR435-100250R0.5-075-S10 | 10 | 1 | 25 | 75 | 10 |
| HMR435-100250R0.5-100-S10 | 10 | 0.5 | 25 | 100 | 10 |
| HMR435-100250R1.0-100-S10 | 10 | 1 | 25 | 100 | 10 |
| HMR435-120300R0.5-075-S12 | 12 | 0.5 | 30 | 75 | 12 |
| HMR435-120300R1.0-075-S12 | 12 | 1 | 30 | 75 | 12 |
| HMR435-120300R0.5-100-S12 | 12 | 0.5 | 30 | 100 | 12 |
| HMR435-120300R1.0-100-S12 | 12 | 1 | 30 | 100 | 12 |
HM-MAX Flat End Mill, 2-Flute, 35° helix
Catalog page 9 · 16 sizes · code HME235
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HME235-010030-050-S04 | 1.0 | 3 | 50 | 4 |
| HME235-015040-050-S04 | 1.5 | 4 | 50 | 4 |
| HME235-020060-050-S04 | 2 | 6 | 50 | 4 |
| HME235-025070-050-S04 | 2.5 | 7 | 50 | 4 |
| HME235-030090-050-S03 | 3 | 9 | 50 | 3 |
| HME235-030090-050-S04 | 3 | 9 | 50 | 4 |
| HME235-040110-050-S04 | 4 | 11 | 50 | 4 |
| HME235-050130-050-S06 | 5 | 13 | 50 | 6 |
| HME235-060160-050-S06 | 6 | 16 | 50 | 6 |
| HME235-080200-060-S08 | 8 | 20 | 60 | 8 |
| HME235-100250-075-S10 | 10 | 25 | 75 | 10 |
| HME235-120300-075-S12 | 12 | 30 | 75 | 12 |
| HME235-140350-100-S14 | 14 | 35 | 100 | 14 |
| HME235-160400-100-S16 | 16 | 40 | 100 | 16 |
| HME235-180450-100-S18 | 18 | 45 | 100 | 18 |
| HME235-200450-100-S20 | 20 | 45 | 100 | 20 |

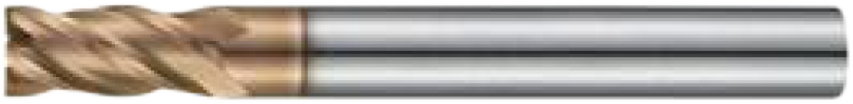

HM-MAX Long Shank Flat End Mill, 4-Flute, 35° helix
Catalog page 9 · 12 sizes · code HMEL435
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HMEL435-030090-075-S04 | 3 | 9 | 75 | 4 |
| HMEL435-040120-075-S04 | 4 | 12 | 75 | 4 |
| HMEL435-030120-100-S04 | 3 | 12 | 100 | 4 |
| HMEL435-040160-100-S04 | 4 | 16 | 100 | 4 |
| HMEL435-050150-075-S06 | 5 | 15 | 75 | 6 |
| HMEL435-060180-075-S06 | 6 | 18 | 75 | 6 |
| HMEL435-050200-100-S06 | 5 | 20 | 100 | 6 |
| HMEL435-060240-100-S06 | 6 | 24 | 100 | 6 |
| HMEL435-080240-075-S08 | 8 | 24 | 75 | 8 |
| HMEL435-080320-100-S08 | 8 | 32 | 100 | 8 |
| HMEL435-100400-100-S10 | 10 | 40 | 100 | 10 |
| HMEL435-120480-100-S12 | 12 | 48 | 100 | 12 |
HM-MAX Long Shank Flat End Mill, 2-Flute, 35° helix
Catalog page 10 · 12 sizes · code HMEL235
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HMEL235-030090-075-S04 | 3 | 9 | 75 | 4 |
| HMEL235-040120-075-S04 | 4 | 12 | 75 | 4 |
| HMEL235-030120-100-S04 | 3 | 12 | 100 | 4 |
| HMEL235-040160-100-S04 | 4 | 16 | 100 | 4 |
| HMEL235-050150-075-S06 | 5 | 15 | 75 | 6 |
| HMEL235-060180-075-S06 | 6 | 18 | 75 | 6 |
| HMEL235-050200-100-S06 | 5 | 20 | 100 | 6 |
| HMEL235-060240-100-S06 | 6 | 24 | 100 | 6 |
| HMEL235-080240-075-S08 | 8 | 24 | 75 | 8 |
| HMEL235-080320-100-S08 | 8 | 32 | 100 | 8 |
| HMEL235-100400-100-S10 | 10 | 40 | 100 | 10 |
| HMEL235-120480-100-S12 | 12 | 48 | 100 | 12 |

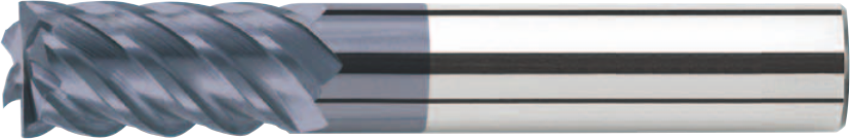

HM-MAX Flat End Mill, 6-Flute, 45° helix
Catalog page 10 · 6 sizes · code HME645
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HME645-060180-060-S06 | 6 | 18 | 50 | 6 |
| HME645-080200-060-S08 | 8 | 20 | 60 | 8 |
| HME645-100300-075-S10 | 10 | 30 | 75 | 10 |
| HME645-120320-075-S12 | 12 | 32 | 75 | 12 |
| HME645-160400-100-S16 | 16 | 40 | 100 | 16 |
| HME645-200450-100-S20 | 20 | 45 | 100 | 20 |
HM-MAX Extended Reach Flat End Mill, 6-Flute, 45° helix
Catalog page 11 · 8 sizes · code HMEL645
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HMEL645-606240-075-S06 | 60.6 | 24 | 75 | 6 |
| HMEL645-060240-100-S06 | 6 | 24 | 100 | 6 |
| HMEL645-080320-075-S08 | 8 | 32 | 75 | 8 |
| HMEL645-080320-100-S08 | 8 | 32 | 100 | 8 |
| HMEL645-100450-100-S10 | 10 | 45 | 100 | 10 |
| HMEL645-120450-100-S12 | 12 | 45 | 100 | 12 |
| HMEL645-160640-150-S16 | 16 | 64 | 150 | 16 |
| HMEL645-200750-150-S20 | 20 | 75 | 150 | 20 |

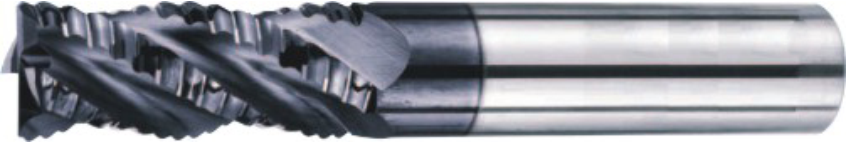

HM-MAX Roughing End Mill, 4-Flute, 30° helix
Catalog page 11 · 8 sizes · code HMRE430
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HMRE430-030080-050-S04 | 3 | 8 | 50 | 4 |
| HMRE430-040100-050-S04 | 4 | 10 | 50 | 4 |
| HMRE430-060150-060-S06 | 6 | 15 | 60 | 6 |
| HMRE430-080200-060-S08 | 8 | 20 | 60 | 8 |
| HMRE430-100250-075-S10 | 10 | 25 | 75 | 10 |
| HMRE430-120300-075-S12 | 12 | 30 | 75 | 12 |
| HMRE430-160400-100-S16 | 16 | 40 | 100 | 16 |
| HMRE430-200500-100-S20 | 20 | 50 | 100 | 20 |
HM-MAX Extended Reach Roughing End Mill, 4-Flute, 30° helix
Catalog page 12 · 6 sizes · code HMREL430
| Model | Dia. (mm) | Flute length (mm) | Overall length (mm) | Shank dia. (mm) |
|---|---|---|---|---|
| HMREL430-060240-100-S06 | 6 | 24 | 100 | 6 |
| HMREL430-080320-100-S08 | 8 | 32 | 100 | 8 |
| HMREL430-100400-100-S10 | 10 | 40 | 100 | 10 |
| HMREL430-120480-100-S12 | 12 | 48 | 100 | 12 |
| HMREL430-160650-150-S16 | 16 | 65 | 150 | 16 |
| HMREL430-200800-150-S20 | 20 | 80 | 150 | 20 |
How to read the model number

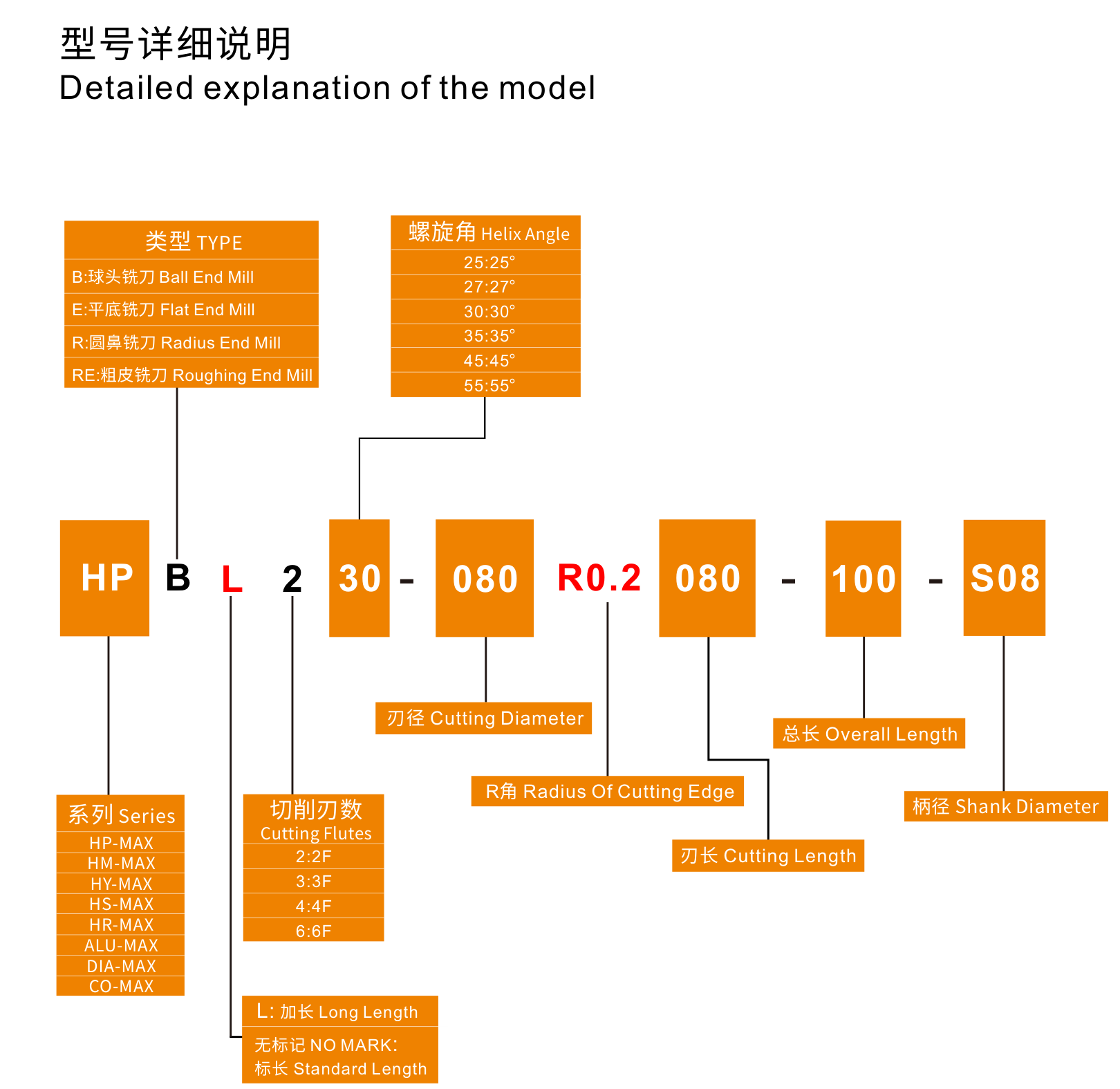

The catalog page “Detailed explanation of the model” reads a code left to right as series, cutter type, length mark, flutes, helix angle, cutting diameter, corner radius, cutting length, overall length and shank diameter. The original diagram is reproduced here:
Source: source-excerpts/catalog-2025-pages-3-4-milling-contents-model-code.txt — Original PDF page 4
